技术参数表
备注：
技术参数数据为最大值,并不能同时使用；
超出技术参数范围的使用工况请咨询德威迩公司技术部：0632-5832779-603

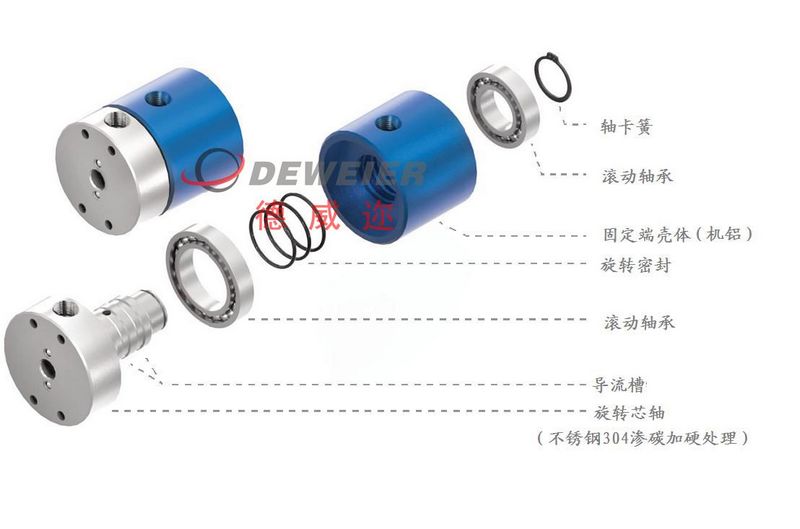

产品特点
产品选型表
CatalogModel
|
Max. Pressure¹ |
600 PSI (40 BAR) |
|
Max. Vacuum¹ |
30 HG |
|
Max. Rotational Speed¹ |
500 RPMPlease note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle. |
|
Temperature Range¹ |
0° F to 220° F (-18° C to 105° C)² |
|

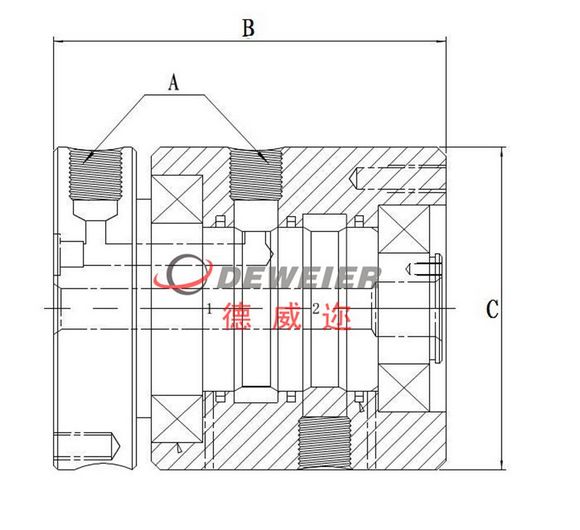

Part # |
Thru Bore |
Overall Diameter |
Overall Length |
Min Torque* |
Passage Size |
Connection |
Part Downloads |
Quote |
|
LT-2141 |
0.375 |
2.187 |
3.314 |
4 |
0.156 |
1/8"-27 NPT |
|
|
|
LT-2341 |
0.375 |
3.437 |
6.284 |
12 |
0.375 |
3/8"-18 NPT |
